In today’s tech-driven world, machine vision lenses are the unsung heroes behind automation, quality control, and robotics. These specialized lenses enable machines to “see” and interpret their surroundings with precision, but how exactly do they work?
How Does a Machine Vision Lens Work? The Core Mechanics
A machine vision lens is designed to capture high-resolution images with minimal distortion, feeding data to a camera sensor for analysis. Unlike standard camera lenses, machine vision lenses prioritize accuracy, consistency, and speed to support real-time decision-making. Here’s a step-by-step breakdown:
- Light Capture: The lens focuses light from the scene onto the camera sensor, much like a human eye. However, machine vision lenses use advanced coatings and glass elements to reduce glare and chromatic aberration, ensuring crisp images even in challenging lighting.
- Image Formation: The lens’s focal length determines the field of view (FOV) and magnification. For example, a telecentric lens (common in industrial settings) maintains consistent image size regardless of distance, eliminating perspective distortion.
- Sensor Integration: The captured light is converted into electrical signals by the sensor, which then processes the data using algorithms to detect patterns, defects, or objects.
Key Components of a Machine Vision Lens
- Optical Elements: Multiple lenses work together to correct distortions and sharpen the image. Aspheric lenses are often used to minimize bulk while maintaining performance.
- Aperture Control: Some lenses feature adjustable apertures to regulate light intake, crucial for balancing exposure in varying environments.

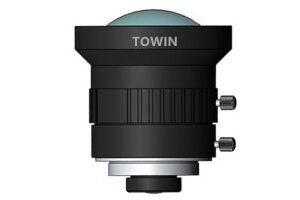

- Mounting Systems: Machine vision lenses use precise mounting standards (e.g., C-mount or F-mount) to ensure compatibility with cameras and stable alignment.
Why Machine Vision Lenses Stand Out
- High Resolution: They support sensors with megapixel counts exceeding 20MP, capturing minute details critical for inspection tasks.
- Low Distortion: Designed to keep straight lines straight, these lenses prevent warping that could mislead automated systems.
- Durability: Built to withstand harsh conditions like vibrations, dust, and extreme temperatures, making them ideal for factory floors.
Real-World Applications
- Manufacturing: Inspecting product defects on assembly lines at speeds impossible for human eyes.
- Robotics: Guiding robotic arms to pick and place objects with millimeter accuracy.
- Healthcare: Assisting in medical device assembly or analyzing lab samples.
For a deeper dive into lens specifications, check out this guide to selecting machine vision lenses by industry experts.
Challenges and Innovations
While machine vision lenses excel in controlled environments, they face hurdles like dynamic lighting or reflective surfaces. Innovations like liquid lenses (which adjust focus electronically) and AI-powered image processing are addressing these issues, pushing the boundaries of what’s possible.
Conclusion
A machine vision lens is a marvel of engineering, blending optics and computing to power the future of automation. By understanding its inner workings, businesses can leverage this technology to boost efficiency, reduce errors, and unlock new possibilities.
