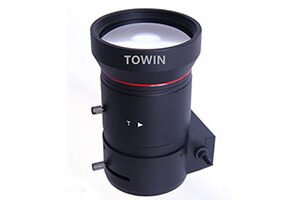

Machine vision systems have revolutionized industries like manufacturing, logistics, and healthcare by enabling automated inspection, quality control, and process optimization. At the heart of these systems lies the machine vision lens, a critical component that determines image clarity, accuracy, and reliability. Understanding its anatomy is essential for selecting the right lens for your application.
1. Optical Elements (Lenses)
The optical elements are the building blocks of a machine vision lens, responsible for focusing light onto the image sensor. Typically composed of multiple glass or plastic lenses arranged in groups, these elements correct aberrations like chromatic distortion, spherical aberration, and astigmatism. High-quality lenses use low-dispersion glass (e.g., ED glass) to minimize color fringing and ensure sharp, true-to-life images. The number of lenses varies—compact lenses may have 4–6 elements, while high-performance models use 10+ for superior correction.
2. Aperture Stop
The aperture stop controls the amount of light entering the lens, similar to a camera’s iris. Adjusting the aperture (measured in f-numbers) impacts depth of field (DoF) and exposure. A smaller aperture (higher f-number) increases DoF, keeping more of the scene in focus—critical for inspecting 3D objects. Conversely, a wider aperture (lower f-number) allows more light, useful in low-light environments but reduces DoF. Some machine vision lenses feature manual or motorized iris mechanisms for dynamic light adjustment.
3. Mounting System
The mounting system ensures the lens securely attaches to the camera sensor while maintaining precise alignment. Common standards include C-mount (17.52mm flange distance) and F-mount (46.5mm), with newer options like M12 for compact applications. The mount must resist vibrations and thermal expansion to prevent misalignment, which can degrade image quality. Some lenses include locking screws or bayonet mounts for added stability in high-vibration environments like automotive assembly lines.
4. Focus Mechanism
Achieving sharp focus is non-negotiable in machine vision. Manual focus lenses rely on user adjustment via a ring or screw, ideal for fixed setups. For dynamic applications, motorized focus lenses integrate stepper motors or piezoelectric actuators for remote, software-controlled adjustments. This automation is vital in robotics, where the lens must adapt to varying object distances without human intervention.
5. Coatings and Filters
Anti-reflective (AR) coatings minimize light loss and ghosting by reducing reflections between lens surfaces. Multi-layer coatings enhance contrast and color accuracy, especially in bright or backlit conditions. Some machine vision lenses incorporate bandpass filters to isolate specific wavelengths (e.g., infrared for laser-based inspection) or polarizing filters to reduce glare from reflective surfaces.
Why These Components Matter
Each element of a machine vision lens works synergistically to deliver images free from distortion, blur, or artifacts. For instance, a lens with poor optical correction might misread barcodes, leading to costly errors in logistics. Similarly, a subpar mounting system could drift over time, causing inconsistent inspection results.
Recommended Reading: What is an F-mount machine vision lens?
Conclusion
The machine vision lens is far more than a simple light-gathering tool—it’s a meticulously engineered system where every component plays a role in achieving perfection. By prioritizing optical quality, aperture control, robust mounting, precise focusing, and advanced coatings, you can unlock unparalleled accuracy in your machine vision setup.
